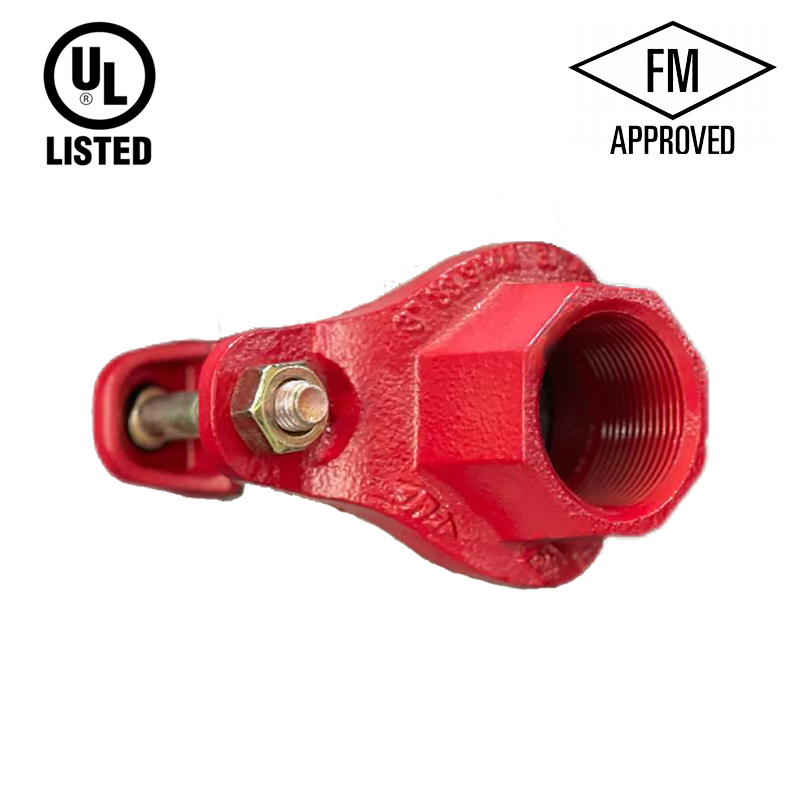

A Mechanical Tee is a specialized pipe fitting designed to create a branch connection on an existing pipeline without the need for welding or threading. It is commonly used in fire protection, HVAC, plumbing, and industrial piping systems to facilitate quick and reliable installations.
Key Features:
• Material: Typically constructed from ductile iron conforming to ASTM A536 Grade 65-45-12, providing strength and durability.
• Connection: Features a grooved outlet compatible with grooved couplings, allowing for easy integration into existing systems.
• Gasket: Equipped with an EPDM gasket, suitable for a temperature range of -30°F to 230°F (-34°C to 110°C), ensuring a secure and leak-proof seal.
• Pressure Rating: Designed to withstand working pressures up to 500 psi (34.5 bar), making it suitable for various applications.
• Certifications: UL Listed and FM Approved, meeting industry standards for safety and performance.
This item is available in the following sizes:
• 2 × ½
• 2 × ¾
• 2 × 1
• 2 × 1¼
• 2 × 1½
• 2½ × 1
• 2½ × 1¼
• 2½× 1½
• 2½ × 2
• 3 × 1
• 3 × 1¼
• 3× 1½
• 3× 2
• 3× 2½
and more.
